Superheater/reheater fireside corrosion is also known as coal ash corrosion in coal fired units.

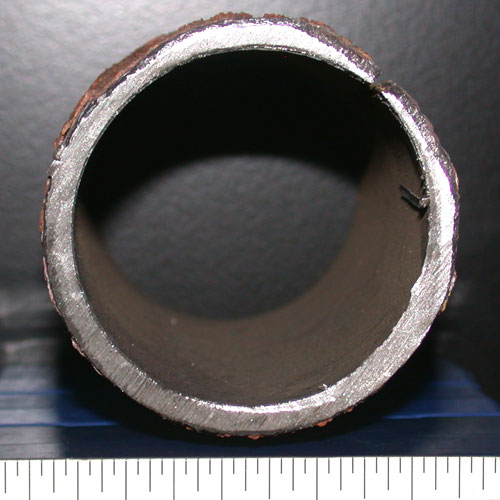

Coal ash corrosion generally occurs as the result of the formation of low melting point, liquid phase, alkali-iron trisulfates. During coal combustion, minerals in the coal are exposed to high temperatures, causing release of volatile alkali compounds and sulfur oxides. Coal-ash corrosion occurs when flyash deposits on metal surfaces in the temperature range of 1025 to 1200°F. With time, the volatile alkali compounds and sulfur compounds condense on the flyash and react with it to form complex alkali sulfates such as K3Fe(SO4)3 and Na3Fe(SO4)3 at the metal/deposit interface, which are low melting point compounds. The molten slag fluxes the protective iron oxide covering the tube, exposing the metal beneath to accelerated oxidation.
Fireside corrosion will generally be most severe in the highest temperature locations of the SH and RH components. These areas include:
There are three general groups of root causes, which include overheating of the tubes, fuel factors, and combustion factors. Overheating can be related to poor initial choice of tube material for the operating conditions, the presence of extra gas touch length, steam side oxide growth/buildup that forms during operation and insulates the tube metal from the cooling effects of the steam, high temperature laning, tube misalignment, change of fuel, and rapid startups causing the reheater to reach temperature before full flow is established. Fuel issues are generally related to the use of fuel with corrosive ash, which is often high in sulfur, sodium, potassium, and/or chlorine. Combustion factors include the use of low NOx systems, the presence of excess unburnt or partially burnt particles leading to an increase in carburization, and the use of oil on startup, which can also lead to carburization.
A thorough visual and/or tactile examination can identify areas with significant fireside corrosion damage. However, where only minor attack has occurred the damage may go undetected. The amount of damage can be quantified with ultrasonic thickness testing. This data is valuable in determining not only the remaining wall thickness but also for establishing corrosion rates and setting reinspection intervals or scheduling replacements.
A metallurgical assessment should be performed to ensure the damage mechanism is fireside corrosion. Fireside corrosion can be superficially similar to long-term overheating. The primary indicator that fireside corrosion is occurring is the presence of low melting point ash compounds in the deposits.
Because it may not be possible to remove the root cause, understanding how to minimize the wastage rate and the use of remaining life assessments are key to economically handling fireside corrosion. Remaining life assessments should include periodic inspection and monitoring of problem areas. There are a number of steps that can be used to mitigate the wastage rate. These include the use of shields and weld overlays; using more corrosion resistant tube materials, either monolithic or co-extruded; changing fuels or fuel handling; reducing coal particle size; limiting tube metal and/or steam temperatures; redistributing of steam flow; removing steam side oxide through chemical cleaning; fixing misaligned tubes; ensure proper sootblowing; minimizing laning of gases; and modifying combustion. Some of these corrective action steps are quite significant and should only be implemented after a root cause has been identified and a thorough analysis of how they will affect the overall system is well understood.
